靜電ESD抑制器，亦稱為：靜電放電抑制器、ESD靜電保護管、ESD二極管、ESD、TVS二極管陣列、瞬態抑制二極管陣列、瞬變電壓抑制二極管陣列等等，當然也有電子工程師習慣稱為TVS二極管、TVS、TVS管，不管其名稱叫法如何多種多樣，其作用都是一樣的。ESD靜電抑制器，主要用于各類通信端口靜電防護，低結電容、低功率、小體積，其工作電壓一般都是根據IC電壓設計。ESD廠家東沃電子（DOWOSEMI）推出的靜電ESD抑制器工作電壓主要有：2.5V、2.8V、3.3V、5V、6V、7V、8V、12V、15V、18V、24V、36V等等。接下來，ESD保護器件廠家東沃電子（DOWOSEMI）要科普的是：DWNC9D5V1BA。

DWNC9D5V1BA描述

查閱東沃電子（DOWOSEMI推出的DWNC9D5V1BA產品手冊可知：The DWNC9D5V1BA is designed to protect voltage sensitive components from damage or latch-up due to ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD for board level. Because of its small size and bi-directional design, it is ideal for use in cellular phones, MP3 players, and portable applications that require audio line protection.

DWNC9D5V1BA特性

·IEC 61000-4-2 Level 4 ESD Protection
-±25kV Contact Discharge
-±25kV Air Discharge

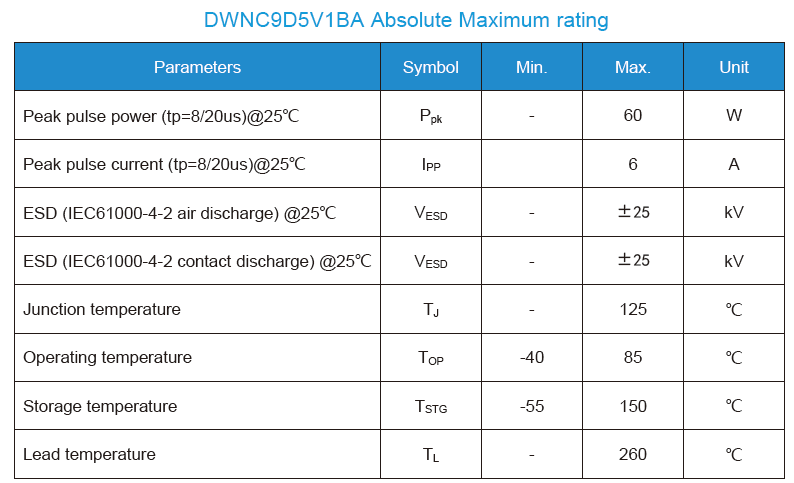

·60W Peak pulse Power (8/20us)
·Low clamping voltage
·Working voltage: 5V

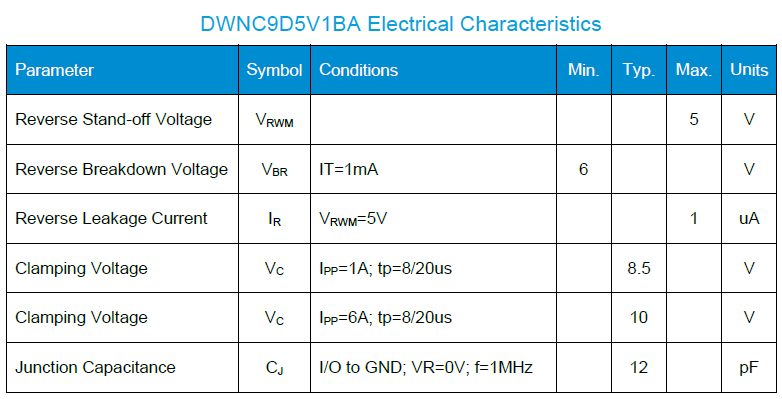

·Peak pulse current (tp=8/20us)@25℃: 6A
·Reverse Breakdown Voltage: 6V
·Reverse Leakage Current: 1uA
·Clamping Voltage (IPP=6A; tp=8/20us): 10V
·Junction Capacitance (I/O to GND; VR=0V; f=1MHz): 12pF
·Low leakage current
·RoHS compliant

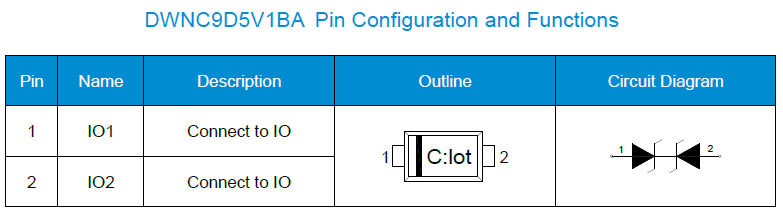

·Protecting one bi-directional lines
·Package: SOD-923

DWNC9D5V1BA應用

·Cellular handsets and accessories
·Portable digital assistants
·Notebooks & handhelds
·Digital cameras
·MP3 players
·Peripherals

可知，靜電ESD抑制器DWNC9D5V1BA功率60W、電壓5V、峰值脈沖電流6A、鉗位電壓10V、SOD-923封裝，關于其特性、參數、應用等方面的知識就分享到這兒了，想了解更多有關DWNC9D5V1BA信息比如報價、樣品、現貨、交期等，可直接咨詢東沃電子產品工程師：136 7581 6901（微信同號）朱工
